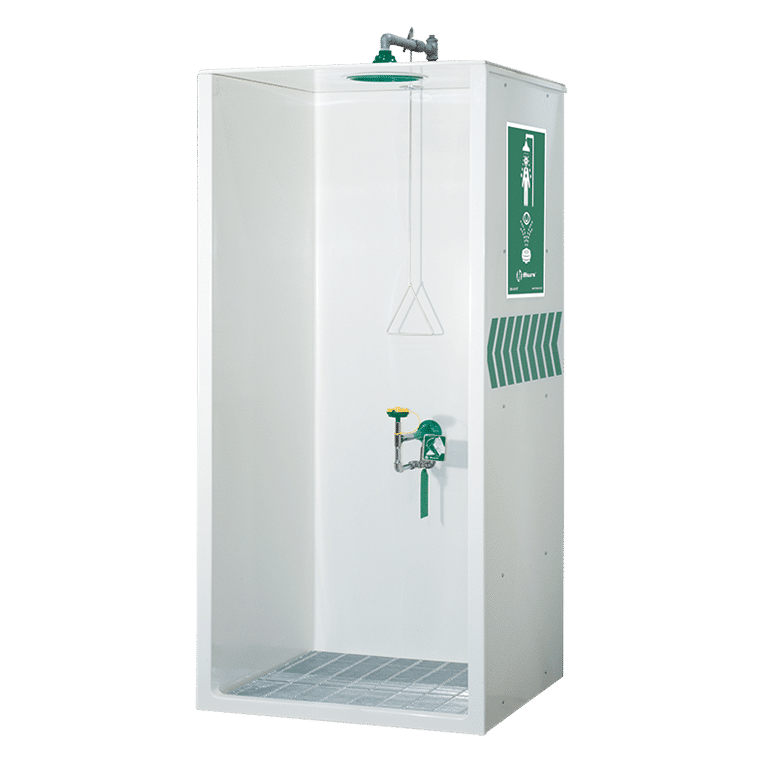

8605WC AXION - Barrier-free emergency safety shower with GRP cabin
The Haws® 8605WC AXION is a combination shower with an integrated protective enclosure made of glass fiber reinforced plastic (GRP). Barrier-free access to the enclosure enables rapid first aid.
The combination shower features an AXION body shower and an AXION eyewash. The eyewash is activated by a push flag and delivers a standard-compliant, soft water jet that rinses the eyes and face simultaneously. The body shower is activated by a pull rod and ensures gentle, even water distribution over the entire body.
The patented AXION system was developed to eliminate the typical weaknesses of conventional systems and ensure effective decontamination in accordance with EN 15154 and ANSI Z358.1.
Technical data for safety shower with cabin 8605WC AXION
- Flow rate for body shower: 76 liters/minute
- Eyewash flow rate: 14 liter/minute
- Flow pressure: min. 2.1 bar, max. 6 bar
- Static pressure: max. 8 bar
- Water inlet: NPT 1“
- Water outlet: 3” connection
Product highlights 8605WC AXION
- Cabinet made of glass fiber reinforced plastic (GRP)
- Barrier-free access to the shower
- AXION® technology with integrated flow control
- 28 cm ABS plastic showerhead
Order information 8605WC AXION
- Item number: 10004986
- Country of origin: USA
Certifications
- EN 15154-1:2006
- EN 15154-2:2006
- EN 15154-5:2019
- ANSI Z358.1-2014 (R2020)
