Bottle Filler Attachment

Model 3377BFG, bottle filler attachment for the Haws 3377G pedestal fountain utilizes a satin finish stainless steel bracket, 100% lead-free waterways, laminar flow, and a galvanized steel pedestal extension with no exterior treatment or processing for a rough, natural steel finish. Appearance of exterior may vary.

Limited Warranty

Spec Sheet

View All Resources

Specifications

Model 3377BFG bottle filler attachment for the 3377G pedestal drinking fountain shall include a 14 gauge Type 304 Stainless Steel bottle filler bracket, 3/16" galvanized steel top-access pedestal extension, 100% lead-free waterways, 1 gpm (3.8 L) laminar flow, push-button operated stainless steel valve with front-accessible cartridge and flow adjustment, and vandal-resistant bottom plate. Appearance of galvanized finish may vary. May be an accessory to a new 3377G pedestal drinking fountain or retrofit to an existing 3377G.

Bottle Filler Attachment

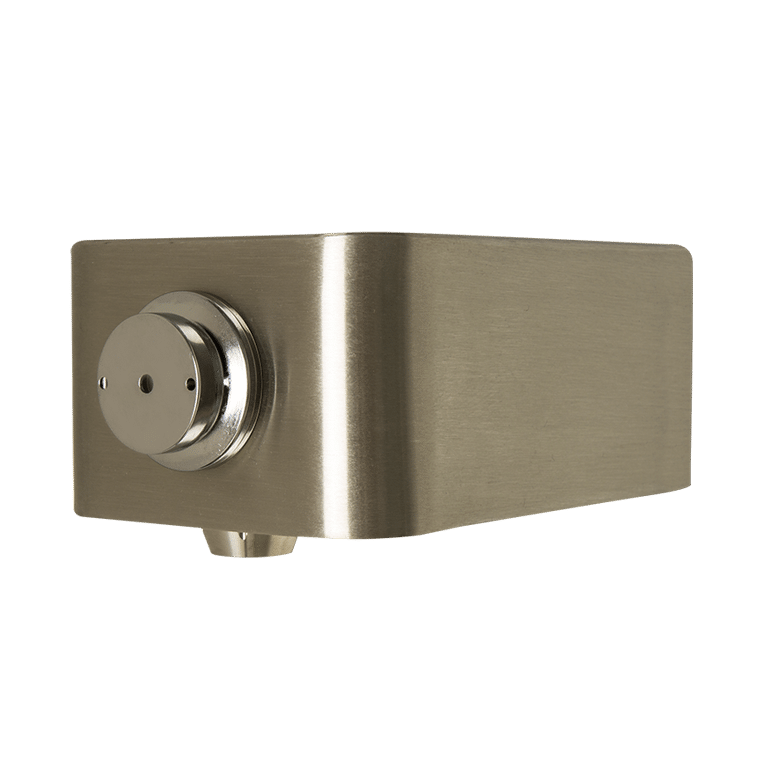

Haws 3377BFG bottle filler attachment for the 3377G pedestal drinking fountain uses a patented stainless steel push-button valve assembly allowing for front access stream adjustment as well as cartridge and strainer access.

14 gauge bottle filler bracket, and 3/16" (.47 cm) thick steel pedestal extension with rough unfinished galvanized surface provides an exceptional corrosion resistance
100% lead-free waterways

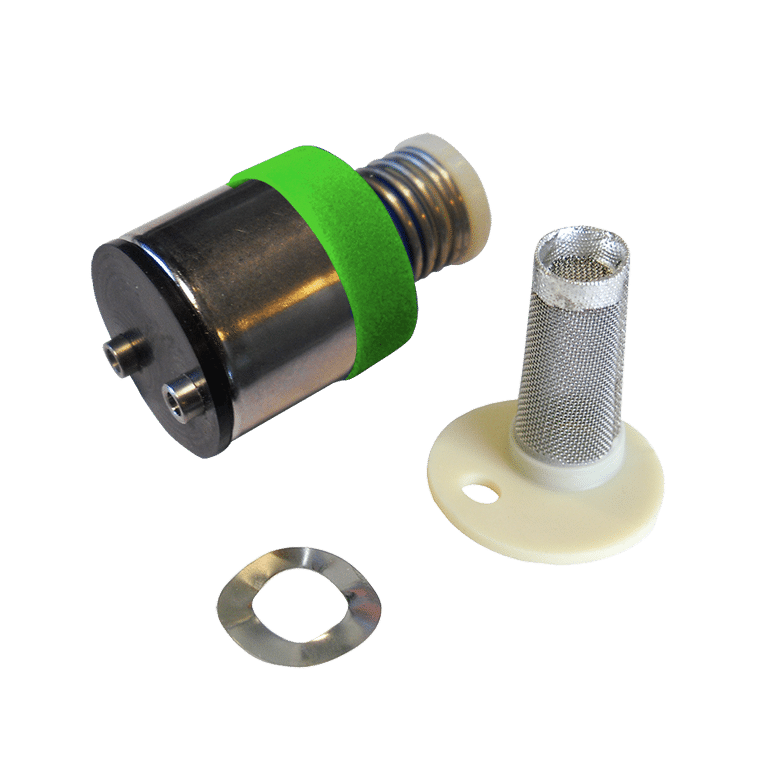

Maintenance is made easy with front access to valve adjustment and cartridge replacement
1 gpm (3.8 L) Laminar flow limits bottle filler from splashing, keeping the drinking area contained and clean

Model meets all current Federal Haws manufactures drinking fountains and electric water coolers to be lead-free by all known definitions including NSF/ANSI Standard 61, and Section 9, .
