eyePOD 7620

Faucet Mounted Eyewash AXION® eyePOD®

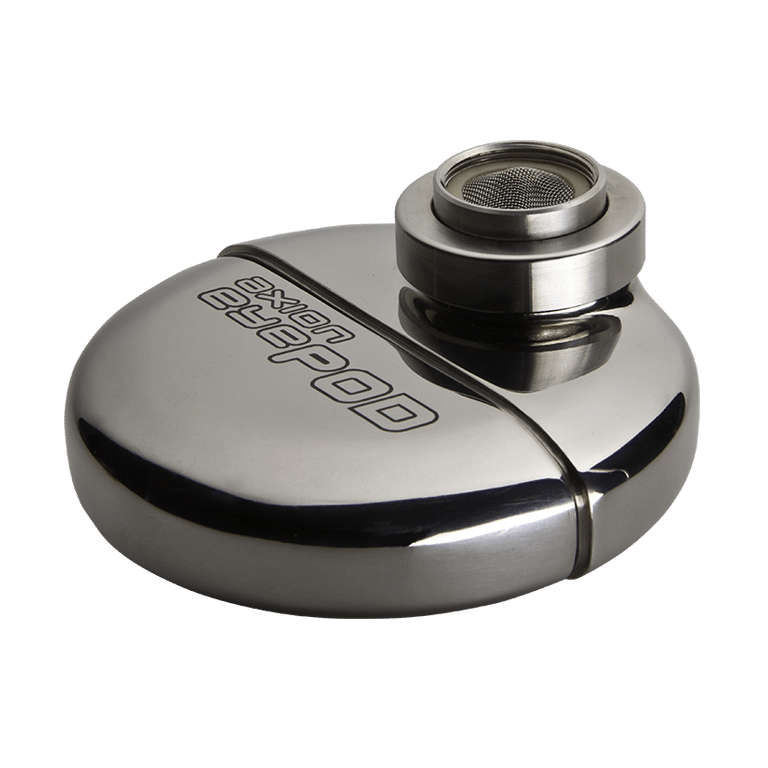

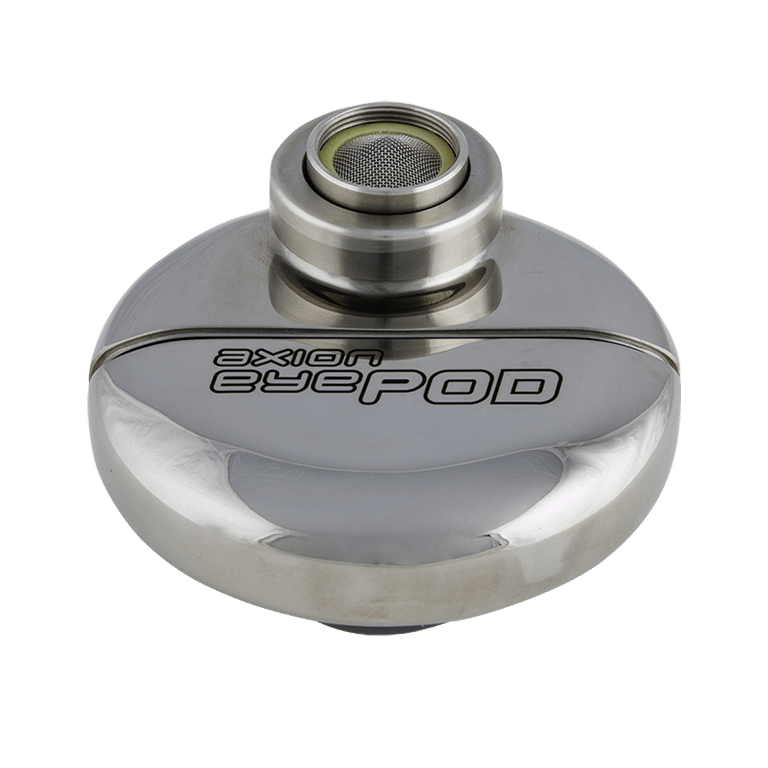

Model 7620 AXION® eyePOD® is a polished stainless steel, faucet-mounted eyewash.

Request a Quote Spec Sheet Download

Faucet Mounted Eyewash AXION® eyePOD®

Model 7620 AXION eyePOD (patent pending) faucet mounted eyewash incorporates the revolutionary inverted flow design, which is the only on the market that provides a Medically Superior Response consistent with all EMT, emergency room and doctor office protocols by sweeping contaminants away from the vulnerable nasal cavity. Traditional eyewashes irrigate from the outside edge of the eye back toward the nose, where contaminants can then be flushed into the nasal cavity through the lacrimal punctum, nature's ocular cavity drain. The symmetrical 'pod' look of the eyewash is constructed of stainless steel and given a polished finish for a durable, esthetically pleasing piece of emergency equipment that can be used for industrial situations and doctors offices alike.

  • Eyewash streams provide Zero Vertical Velocity™ stream engineering with even laminar flow for enhanced comfort, stability and effectiveness
  • Thermostatic shutoff that will protect the user from water over 37.8° C by shutting off the eyewash

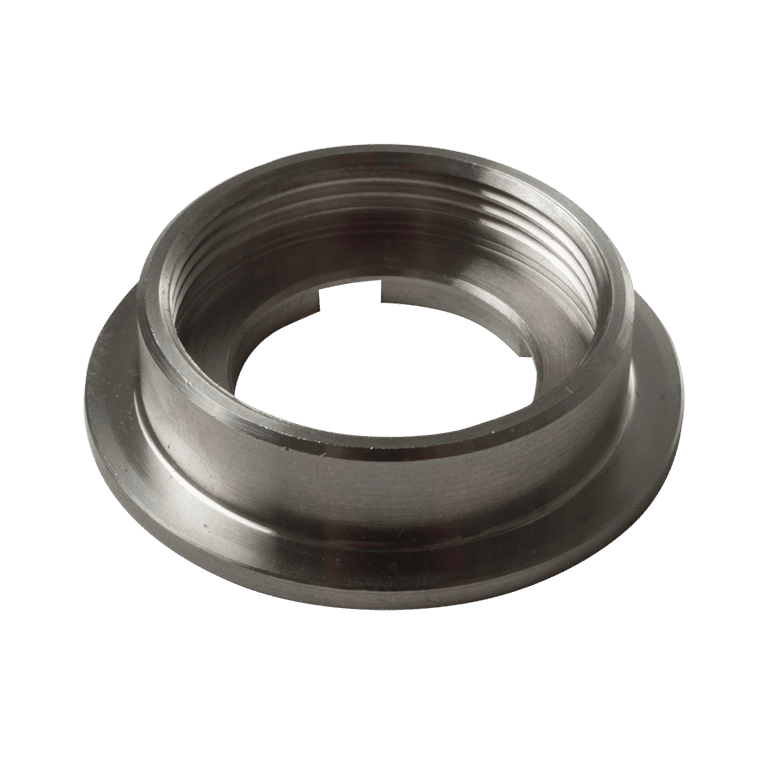

  • Supplied with a standard 55/64-27 female connection. Have a different size? Haws has that covered also with 4 other of the most commonly used faucet adapters including a 15/16-27 male, 13/16-27 male, 3/8-18 male and 13/16-24 female, to accommodate most home, commercial and lab faucet applications

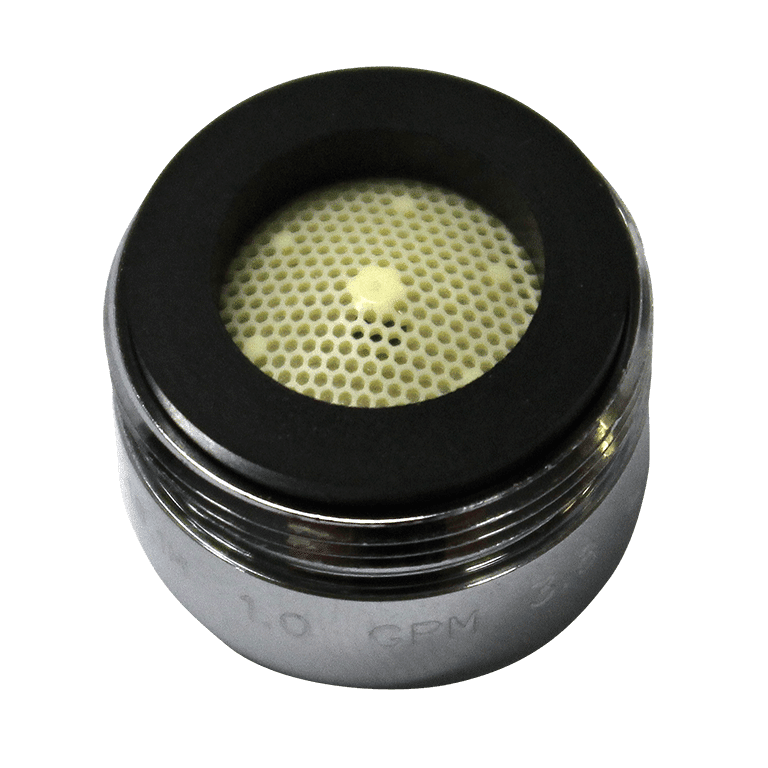

  • Also supplied is a 1 gpm (3.8 L) laminar flow faucet outlet for hospitals or anywhere a precise flow pattern is a must
  • Dim; Diameter 8.9 cm, height (from top to faucet outlet) 5 cm
Certified by CSA to meet the ANSI Z358.1 Standard for Emergency Eyewash and Shower Equipment.

Specifications

Model 7620 AXION® eyePOD® faucet mounted eyewash (patent pending). Constructed of stainless steel with a polished finish, the unit shall feature inverted directional laminar flow which achieves zero vertical velocity supplied by an integral 3.4 L flow control. The faucet outlet flows at 1.9 L. The standard faucet connection is 55/64-27 stainless steel female thread, along with four additional adapters; 15/16-27 male, 13/16-27 male, 3/8-18 male and 13/16-24 female. An optional 3.8 L laminar flow faucet outlet is also supplied. A thermostatic shutoff is used for water temperatures over 37.8° C. Operating pressure; 2.1 - 6.2 bar. Dim; Diameter 8.9 cm, height (from top to faucet outlet) 5 cm
