7655WCSM AXION

AXION® MSR Wheelchair Accessible Surface Mount Eye/Face Wash

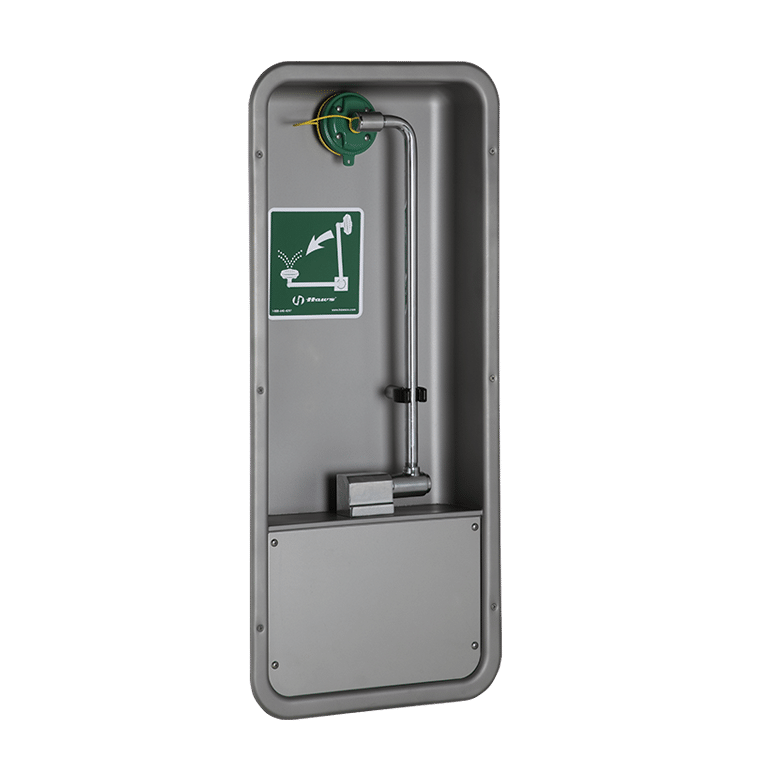

Model 7655WCSM AXION, wheelchair accessible surface mounted pull down eye/face wash with AXION® MSR eye/face wash head, in a stainless steel cabinet.

Limited Warranty

View All Resources

Specifications

Model 7655WCSM AXION wheelchair accessible surface mounted eye/face wash shall include an AXION® MSR eye/face wash head shall feature inverted directional laminar flow which achieves zero vertical velocity supplied by an integral flow control, a surface mounted 18 Gauge, Type 304 stainless steel deep-drawn cabinet, stainless steel surface-mount support enclosure, wheelchair accessibility, and polished chrome-plated brass pull-down valve with easy access in-line strainer. Unit shall also include brass pipe and fittings, a front-access maintenance panel, universal sign, 1/2" NPT(M) inlet. Operating pressure is 30 - 90 psi (2.1 - 6.2 bar).

AXION® MSR Wheelchair Accessible Surface Mount Eye/Face Wash

Model 7655WCSM AXION wheelchair accessible surface mounted eye/face wash features the medically acclaimed AXION MSR eye/face wash head assembly (patent pending). The revolutionary inverted flow design is the only product on the market that provides a Medically Superior Response consistent with all EMT, emergency room and doctors' office protocols by sweeping contaminants away from the vulnerable nasal cavity. Traditional eyewashes irrigate from the outside edge of the eye back toward the nose, where contaminants can then be flushed into the nasal cavity through the lacrimal punctum, nature's ocular cavity drain.

Perfect for mounting on block or solid walls which cannot be cut into
Easy access exterior mounted in-line strainer
18 Gauge Type 304 Stainless Steel recessed cabinet is a deep-drawn heavy duty structure with smudge resistant bead blast finish
The eye/face wash head is easily activated by the emergency equipment's pull-down design
ANSI Z358.1 tempering compliance options

Certified by CSA to meet the ANSI Z358.1 Standard for Emergency Eyewash and Shower Equipment.
