8710

Outdoor Tempered Shower and Eye/Face Wash System

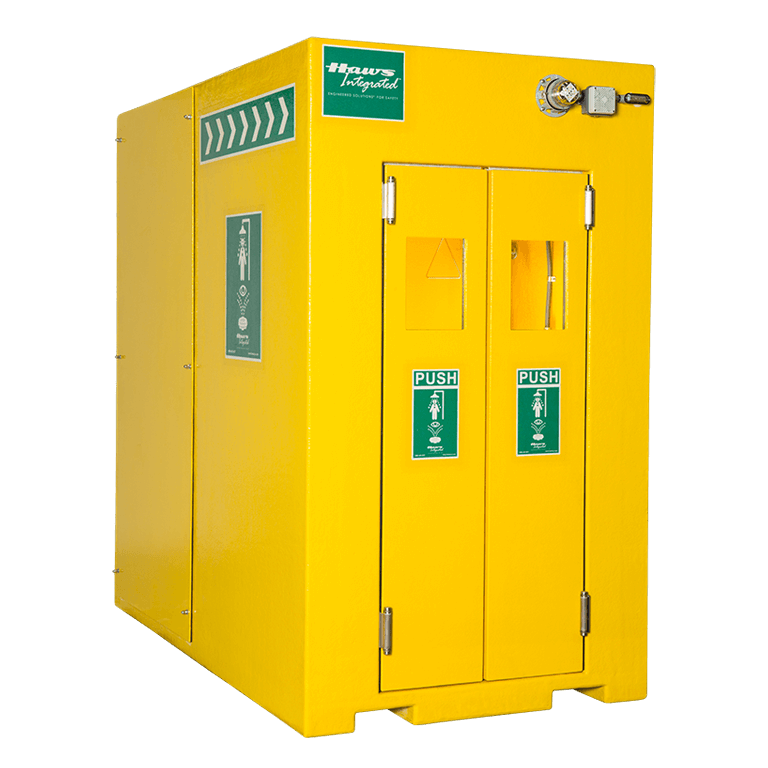

PERFORMANCE SERIES: Model 8710 standard decontamination booth with an internal hot water supply, tempering system, space heater and light. Includes the AXION® MSR eye/face wash and shower head, drench hose assembly with freeze and scald protection bleed valves, and alarm system.

View All Resources

Specifications

Model 8710 heated enclosed shower and eye/face wash shall include a 5' x 9' (1.52 x 2.74 m) booth has an R-value of 11, provides an operating temperature range of -30® to 100® F (-34® to 38® C), and shall include dual spring-loaded, self-closing shower doors, equipment room door, and removable service panel. The Advanced Programmable Monitoring Control System allows for real-time control of the operating system. The booth is trimmed with large directional arrows, large and small universal shower/eyewash signs, fiberglass floor grate, and 3" IPS inside caulk drain. The ball valves are equipped with stainless steel ball and stems, and protected by scald and freeze bleed valves. The internal booth temperature is maintained by a natural convection 2.5kw space heater. The standard alarm system is flow switch activated, and provides local audible and visible alarms. The tempered blending system will include an integral hot water supply, whether stored or supplied by steam, and will incorporate fail-safe features like anti-scald protection and full flow cold water bypass. There is the medically acclaimed AXION® 20 gpm (75.7 L) shower head and AXION® MSR eye/face wash head assembly (patent pending), along with a 3 gpm (11.4 L) side hanging drench hose.
