8904 AXION

AXION Deck Mount Eyewash

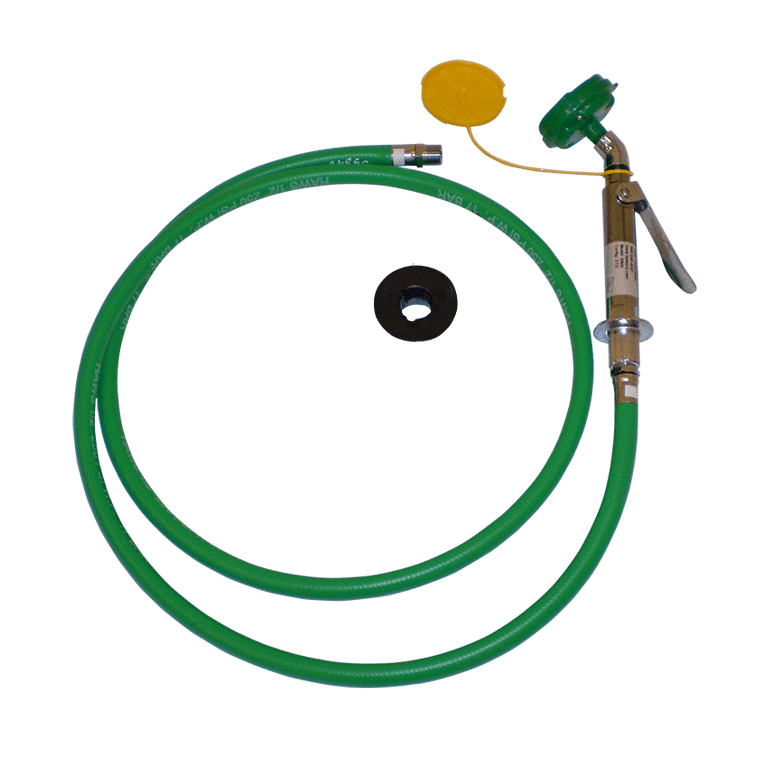

Model 8904 AXION, counter-mounted eye/face wash with AXION® MSR eye/face wash and body spray head, with 8 foot (243.8 cm) green hose.

Request a Quote

AXION Deck Mount Eyewash

Haws 8904 AXION deck mounted eye/face wash features the medically acclaimed AXION MSR eye/face wash head assembly (patent pending). This revolutionary inverted flow design is the only product on the market that provides a Medically Superior Response consistent with all EMT, emergency room and doctors' office protocols by sweeping contaminants away from the vulnerable nasal cavity. Traditional eyewashes irrigate from the outside edge of the eye back toward the nose, where contaminants can then be flushed into the nasal cavity through the lacrimal punctum, nature's ocular cavity drain. Unit is activated with simple squeeze lever operation.

  • Dust cover allows for the 8904 AXION to stay protected from debris when not in use
  • Easily detected and maintained, emergency equipment is equipped with safety sign and test card to record weekly testing
  • 8 foot (243.8 cm) green hose provides an extended coverage area to further optimize the irrigation process
  • In order to comply with state codes the use of a vacuum breaker is required with all hand held eye/face wash body spray units (Haws offers model SP212)
  • EN 15154 compliant
Certified by CSA to meet the ANSI Z358.1 Standard for Emergency Eyewash and Shower Equipment.

Certifications
  • EN 15154-2:2006
  • ANSI Z358.1-2014 (R2020)

Specifications

Model 8904 AXION counter-mounted eye/face wash and body spray shall include an AXION® MSR eye/face wash head which features an inverted directional laminar flow which achieves zero vertical velocity supplied by an integral flow control. The unit shall also include a chrome plated brass stay-open squeeze lever valve, 8 foot (243.8 cm) 250 psi (17.2 bar) green hose with chrome-plated swivel fitting at one end, Noryl plastic deck flange with integral key slot for proper positioning of unit, universal sign, and 1/2" NPT inlet. In order to comply with state codes the use of a vacuum breaker is required with all hand held eye/face wash body spray units (Haws offers model SP212)
