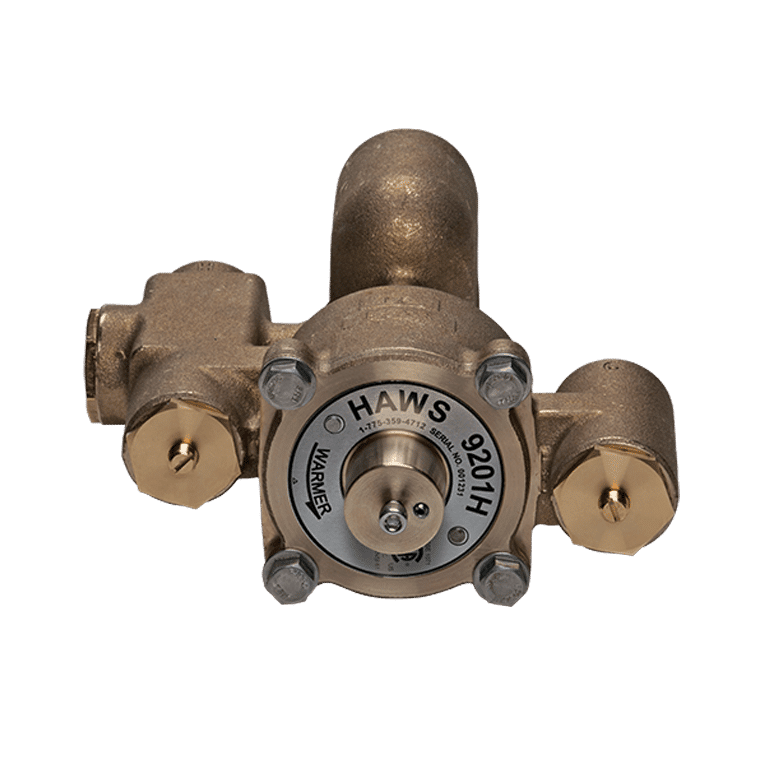

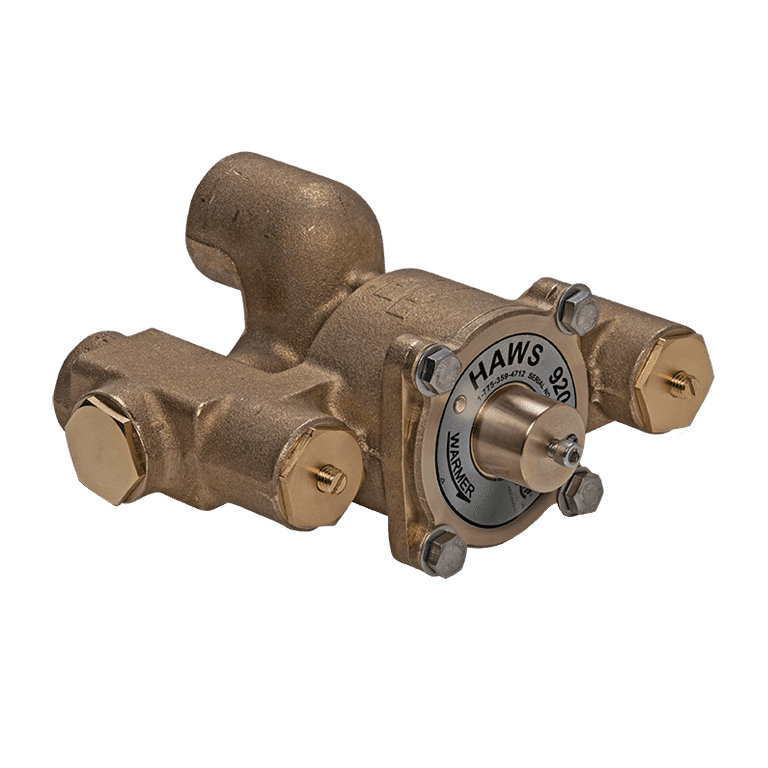

9201H

Thermostatic Mixing Valve

Model 9201H Lead-free AXION® Emergency Tempering Valve thermostatically mixes hot and cold water to provide a safe fluid supply for emergency showers and eyewash equipment, with a flow rate of 31 gpm (117.3 L).

Request a Quote

Thermostatic Mixing Valve

Model 9201H, lead-free Emergency Valve (patent pending), thermostatically mixes hot and cold water to provide a safe fluid supply for emergency showers and eyewash equipment. The valve contains a secondary high temperature limit valve to provide additional protection to the user in the event of main tempering valve malfunction. Additionally, to ensure a fail-safe water supply for emergency shower and eyewash stations, a series of cold water by-pass valves open in the event of hot water pressure loss. (No gauges supplied - ASSE 1071 standard recommends gauges be placed 5 to 8 feet downstream for the most accurate measurement.)

  • A flow rate of 1 to 31 gpm (3.8 to 117.3 L) for better temperature control across the operating range
  • AXION's superior design and technology provide a complete safety solution for increased victim comfort.
  • Lowest internal pressure drop for this class of valve (advantage where supply pressure is low)
  • Wax based thermostat technology for fast response time with proven highly reliable temperature control
  • Highest Cold Water Bypass flow rate in the industry (65% of rated tepid flow rate)
  • Modular lead-free brass design with internal check stops
  • Oversized valve seats resist failures caused by foreign matter
  • A new and efficient shuttle design eliminates valve sticking
  • A custom funnel design improves temperature control at low flow rates
  • Outlet temperature is factory set to 85® F (29® C)
  • Tempered water: High temperature limit is factory set to 87® F (30® C)
  • Cold water by-pass valves are closed during normal operation, regardless of flow rate
Listings: ASSE 1071, CSA B125.3, NSF/ANSI 372, NSF/ANSI 61-section 8, California Health and Safety Code 116875 (AB 1953).
