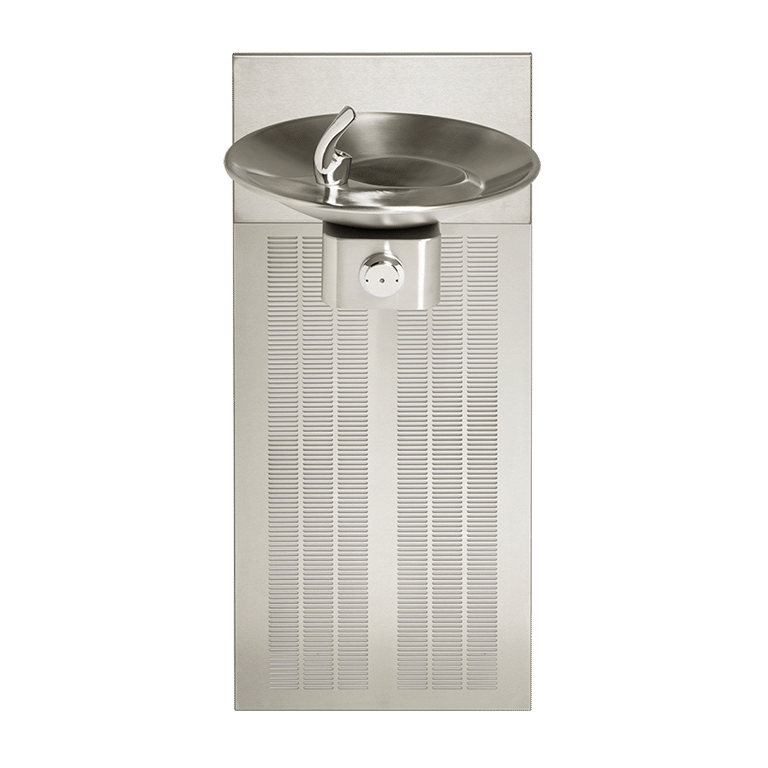

Barrier-Free Chilled Wall Mount Fountain

Model H1001.8, barrier-free, satin finish stainless steel electric water cooler with round sculpted bowl, and 100% lead-free waterways.

Request a Quote

Barrier-Free Chilled Wall Mount Fountain

Model H1001.8 barrier-free electric water cooler provides 8 gph (30.3 L) chilled water performance in an engineered stainless steel skin. It uses a patented stainless steel push-button valve assembly allowing for front access stream adjustment as well as cartridge and strainer access. Outfitted with such protective features as vandal resistant bubbler head, waste strainer, and bottom plate, this electric water cooler is quick to discourage vandals.

18 gauge Type 304 Stainless Steel bowl assembly mounted on a 14 gauge Type 304 Stainless Steel wall bracket
100% lead-free waterways
Grille slots are designed to eliminate sharp edges and are backed with a foam filter to protect the fan motor and high displacement compressor from debris
Maintenance is made easy with front access to valve adjustment and cartridge replacement
Designed to run at a low energy usage, this water cooler is assured to have a long lasting life
Laminar flow prevents splashing, keeping the drinking area contained and clean
Beautiful satin finish resists stains and corrosion

Model H1001.8 meets all current Federal Haws manufactures drinking fountains and electric water coolers to be lead-free by all known definitions including NSF/ANSI Standard 61, and Section 9. Note: Electric water coolers are not recommended or designed for outdoor applications or enclosed pool areas (chlorine). These conditions may void warranty.

MTGFR.SM

Mounting Frame

6463

Drain Strainer

BP6

Back Panel

5705

Bubbler Head

PBM1000

Bottom Plate

PBA6

Valve Button

VRK5874

Valve Repair Kit

6983506

Spanner Wrench

5874SS

Barrier-Free Chilled Wall Mount Fountain

6426

Water Filter

1900

Bottle Filling Station

Limited Warranty

Specifications

Model H1001.8 electric wall mounted barrier-free water cooler shall include an 18 gauge Type 304 Stainless Steel satin finish basin with integral swirl design, 14 gauge Type 304 Stainless Steel wall bracket, 100% lead-free waterways, push-button operated stainless steel valve with front-accessible cartridge and flow adjustment, polished chrome-plated brass vandal-resistant bubbler head with integral laminar anti-squirt flow, chrome-plated brass vandal-resistant waste strainer, vandal-resistant bottom plate, stainless steel satin finish back panel and louvered intrusion-proof grill, and 1-1/4" (3.2 cm) O.D. waste pipe. The R-134a refrigeration system is hermetically sealed and delivers a minimum of 8 gph (30.3 L) of water at 50° F (10° C) cooled from 80° F (26.7° C) inlet water at 90° F (32.2° C) ambient. 115 Volts, 60Hz, rated watts: 370, full load amps: 5. REQUIRES MODEL HCR8 AND MTGFR.SM PRICED SEPARATELY.
