Barrier-free safety shower with recessed eyewash and drain pan

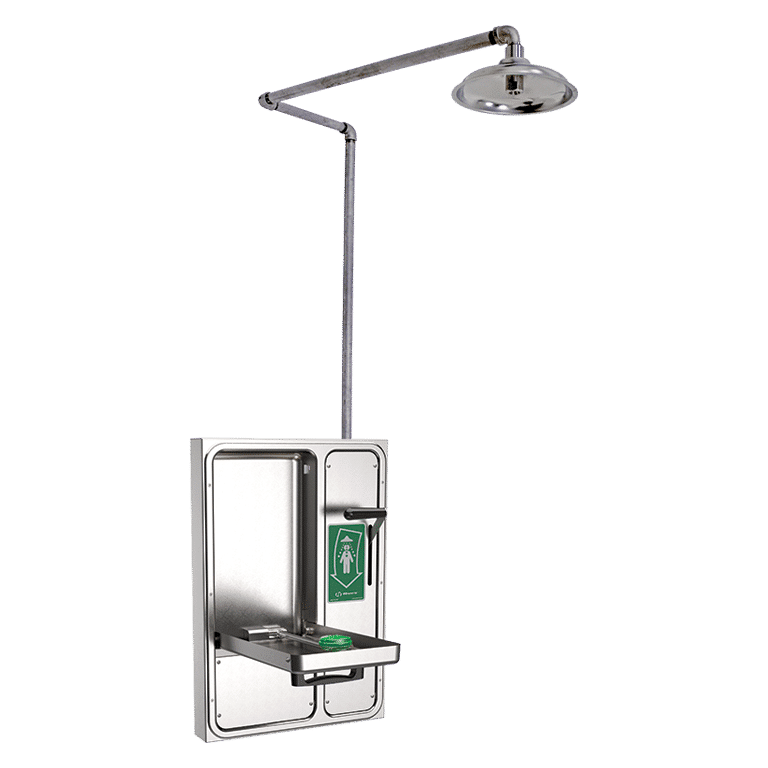

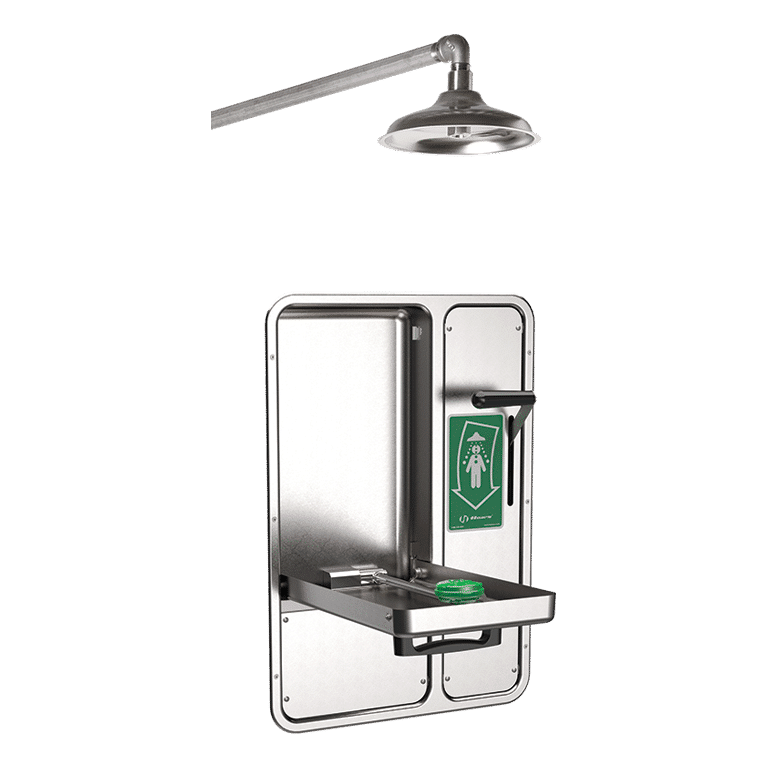

The Haws® 8356WCC AXION is a combined safety shower with ceiling-mounted body shower, stainless steel housing, and space-saving concealed eye wash with drain pan. It was specially designed for laboratories, corridors, and narrow passageways—anywhere where space is limited.
The eyewash features a stainless steel drain pan with integrated panic bar.
Equipped with an AXION body shower and an AXION eyewash head, the 8356WCC AXION provides reliable and standard-compliant first aid. The eyewash is activated by folding down the drain pan and produces a soft, even stream of water for simultaneous rinsing of the eyes and face. The body shower, whose activation is by a pull lever, ensures comprehensive and effective decontamination with its gentle spray.
The 8356WCC AXION barrier-free safety shower meets the requirements of EN 15154 and ANSI Z358.1.
Technical data barrier-free safety shower 8356WCC AXION
- Flow rate for body shower: 76 liters/minute
- Eyewash flow rate: 14 liter/minute
- Water inlet: NPT 1“
- Water outlet: NPT 2”
Product highlights 8356WCC AXION
- Space-saving flush mounting for confined spaces such as laboratories and corridors
- Robust design made entirely of stainless steel
- Integrated stainless steel drain pan with panic bar
- AXION technology for reliable first aid
- Simple, barrier-free activation
Ordering information 8356WCC AXION
- Item number: 10009668
- Country of origin: USA
Certifications
- EN 15154-1:2006
- EN 15154-2:2006
- EN 15154-5:2019
- ANSI Z358.1-2014 (R2020)
