MK81A

Freeze-protection Bury Valve

Model MK81A freeze-protected shower valve that drains water from the shower after closing to prevent freezing. 1-1/4" IPS.

Spec Sheet Download
Voir toutes les ressources

Spécifications

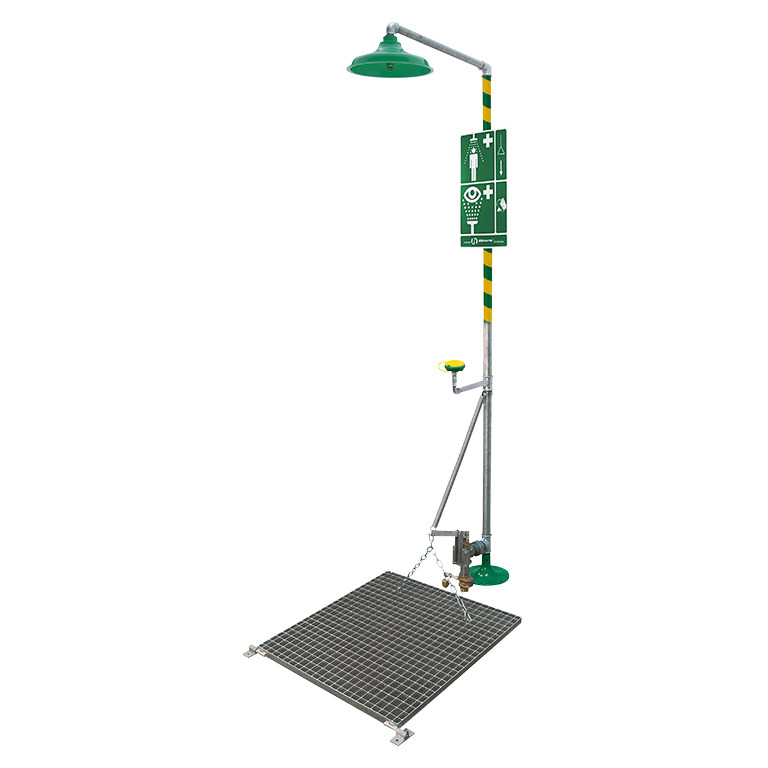

Model MK81A is a special freeze-protected valve that drains water from Model 8300FP AXION combination shower/eyewash after closing to prevent freezing. 1-1/4" MIPS inlet. Standard sizes are 60" and 78" (152.4 and 198.1 cm) for bury depths of 24" and 42" (61 and 106.7 cm) respectively. Servicing Instructions: For replacement of damaged parts, order the VRKMK81A repair kit which includes packing, stuffing box, stuffing box nut, spring and plunger assembly with four O-rings.
