Safety Shower for Dusty Industrial Environments

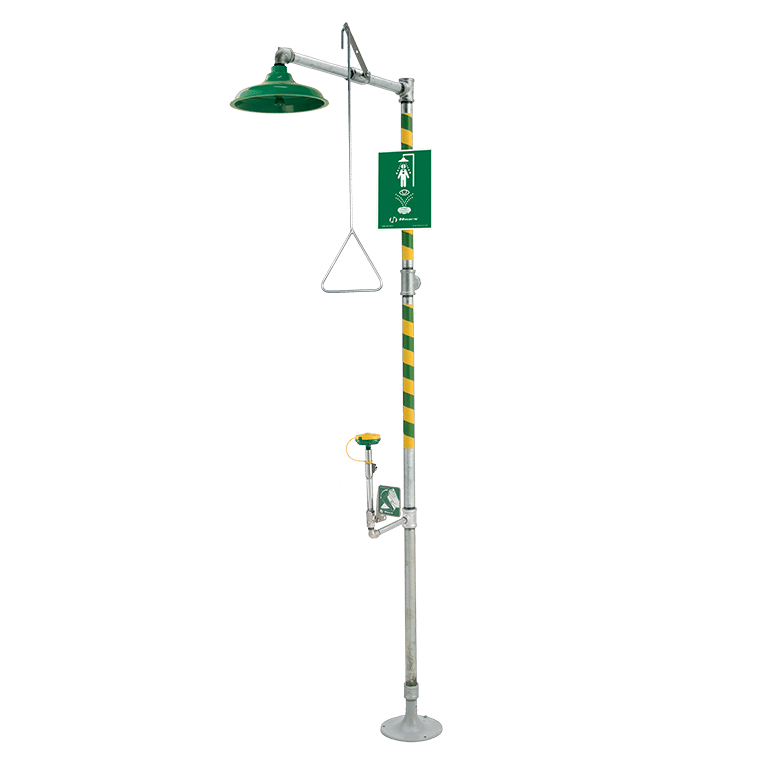

The Haws® 8317 AXION is a robust, versatile combination unit consisting of a body and eyewash, specially developed for use in dusty industrial environments. To prevent the accumulation of dirt, a collection basin has been deliberately omitted – ideal for applications in heavy industry, metalworking, or in open storage and handling areas.
The unit features an AXION body drench shower and an AXION eyewash. The eyewash is activated by a push flag and delivers a standard-compliant, soft water jet that rinses the eyes and face simultaneously. The body drench shower, which is operated by a trigger lever, ensures gentle and even water distribution over the entire body. The unique AXION system was developed to eliminate the shortcomings of conventional designs and ensure effective first aid in accordance with EN 15154 and ANSI Z358.1.
Technical information Safety shower 8317 AXION
- Flow rate of Drench shower: 76 liters/minute
- Flow rate for eyewash: 14 liters/minute
- Flow pressure: min. 2.1 bar, max. 6 bar
- Static pressure: max. 8 bar
- Dimensions (H x W x D): 2363 x 351 x 902 mm
- Water inlet: BSP - Rp 1-1/4" (EN 10226-1)
- Water drain: not available (floor drain recommended)
Product highlights 8317 AXION
- No collection basin – ideal for dusty environments
- AXION® technology with integrated flow control
- 28 cm ABS plastic showerhead
- Reliable chrome-plated brass ball valve with stainless steel ball and spindle
- Hot-dip galvanized steel pipes and fittings
- Powder-coated cast iron floor flange (Ø 23 cm)
- Pedestal design for flexible installation near hazardous areas
- Water connection either at the top or bottom
Ordering information 8317 AXION
- Country of origin: Switzerland
- Item number: 10004773
Certifications
- EN 15154-1:2006
- EN 15154-2:2006
- EN 15154-5:2019
- ANSI Z358.1-2014 (R2020)
